Description
Designed for commercial applications including infrastructure monitoring, energy inspections, firefighting, search and rescue, and more, the Zenmuse XT2 offers a host of new features. With a fully-integrated dual payload, professionals can now capture actionable thermal and color visible data in a single flight; Saving time, money, and lives.
Dual Vision. Superior Intelligence.
Join the next generation of commercial drone solutions with the XT2. Pairing the FLIR Tau 2 thermal sensor and 4K visual camera with DJI’s leading stabilization and machine intelligence technology, the XT2 quickly transforms aerial data into powerful insights that save time, money – and lives.
Robust Dual-Sensor Thermal Solution
Housed within a weather-resistant encasing is a combination of FLIR’s advanced radiometric thermal sensor and 4K visual sensor – all integrated seamlessly with DJI’s powerful enterprise drone platforms.
Transform Data into Insights in Real-Time
Enabled by a suite of processors and computer vision algorithms, the XT2’s onboard Machine Intelligence helps teams identify what’s important while on-site, instead of after lengthy processing time.
Temp Alarm
Don’t miss a thing with instant notifications when object temperatures exceed pre-set parameters.
Heat Track
Capture the most critical information by automatically locking the XT2 onto the hottest object in view.
FLIR MSX®
Quickly interpret data with details from the visual image overlaid on the thermal data stream.
Applications
See the unseen. FLIR thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people, and much more.
Firefighting
Quickly identify hot spots with the ability to directly overlay thermal data on the visual overview and fine-tune isotherm settings.
Solar Panels
Locate damaged panels with little effort by adjusting the Temp Alarm settings to notify you of temperatures outside the norm.
HazMat
Discover if a container is full and identify the substance inside with one image using FLIR MSX.
Ready for Action
M200 Series and M600 Pro Compatible
With a quick turn of the wrist, the Zenmuse XT2 secures onto DJI’s industry-leading M200 Series and M600 Pro drones to provide pilots a direct view and control of this powerful thermal sensor.
When the XT2 is mounted onto an M200 Series drone, pilots have a combined solution that extends the operation window for drone technology – letting pilots fly confidently in lowlight conditions, through a strong breeze or in light rain.
Utilizing the M210 drone models, pilots can build more robust drone solutions around the XT2 over time by adding zoom cameras, additional onboard computers, and other payloads to fit a variety of specialized missions.
Purpose-Built Application

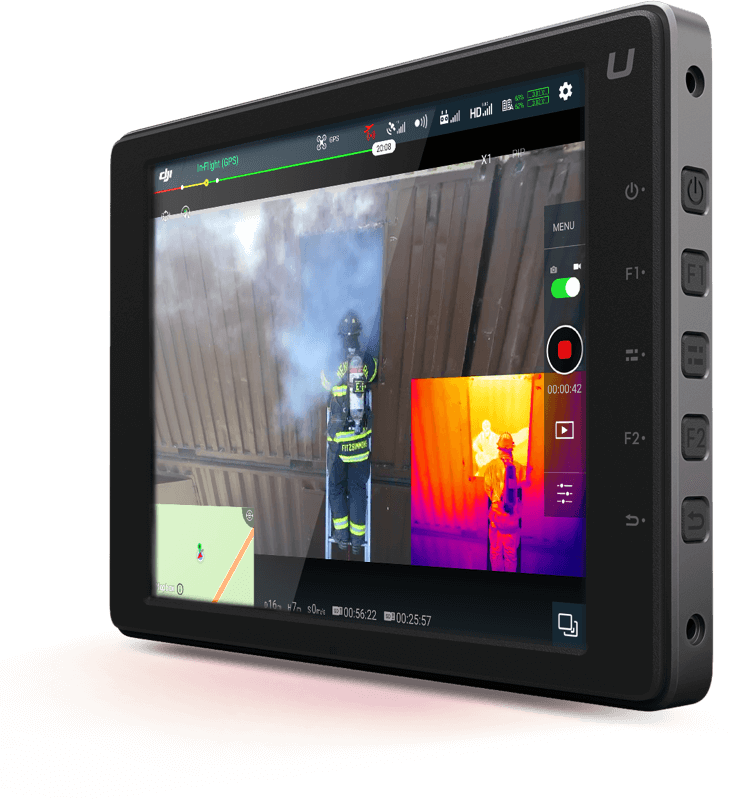

DJI Pilot
Professional Flight ControlDJI Pilot is a robust Android app developed specifically for enterprise-users to unleash the power of their DJI drones. With development made specifically for the XT2, DJI Pilot optimizes your flight and aerial imaging process.
- Access and adjust Spotlight Pro flight modes
- Select area and parameters for Temp Alarm
- On-screen temperature measurements
- Access to color palette, isotherm, and other thermal settings
Models
The Zenmuse XT2 has 10 different models with adjustments in lens size, frame rates, and resolution.
Lens Sizes are 9mm, 13mm, 19mm, and 25mm
Frame rates are 30Hz and 9Hz
Resolutions are 640×512 and 336×256
Please select your model carefully as follows:
| Guide to DJI FLIR Zenmuse XT2 Product Models | ||||
| Model | Lens Size | Frame Rate | Resolution | Price |
| ZXT2B09FR | 9mm | 30Hz | 336×256 | Quote |
| ZXT2B09SR | 9mm | 9Hz | 336×256 | Quote |
| ZXT2A13FR | 13mm | 30Hz | 640×512 | Quote |
| ZXT2B13FR | 13mm | 30Hz | 336×256 | Quote |
| ZXT2A13SR | 13mm | 9Hz | 640×512 | Quote |
| ZXT2B13SR | 13mm | 9Hz | 336×256 | Quote |
| ZXT2A19FR | 19mm | 30Hz | 640×512 | Quote |
| ZXT2B19FR | 19mm | 30Hz | 336×256 | Quote |
| ZXT2A19SR | 19mm | 9Hz | 640×512 | Quote |
| ZXT2B19SR | 19mm | 9Hz | 336×256 | Quote |
| ZXT2A25FR | 25mm | 30Hz | 640×512 | Quote |
| ZXT2A25SR | 25mm | 9Hz | 640×512 | Quote |
